A collaborative platform for teams

Mobflow is a portfolio-grade SaaS simulation that explores modern collaboration workflows with microservices, event-driven communication, and production-style local orchestration.

Mobflow is a collaborative platform for teams that combines authentication, workspaces, task execution, social interactions, notifications, and realtime chat in a single product experience. It is built as a monorepo with eight Spring Boot backend services, an Angular frontend, and a Docker-based local platform that mirrors the operational boundaries of a real SaaS system.

The project exists to understand and simulate how a production-oriented SaaS can be structured across multiple bounded contexts. Instead of presenting a simplified CRUD sample, Mobflow focuses on service boundaries, gateway routing, JWT-based security, asynchronous events with Kafka, polyglot persistence, local observability, and a developer workflow that reflects real platform engineering decisions.

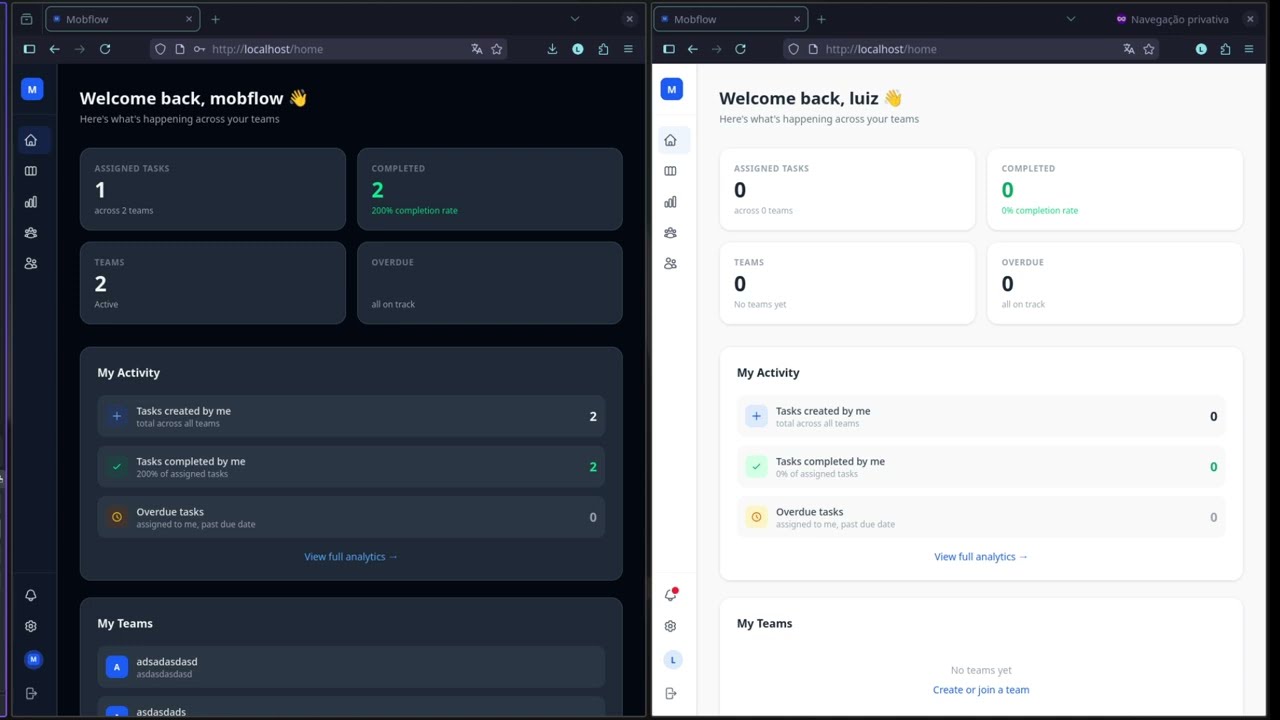

Mobflow supports the full core flow from account registration and email confirmation to login, workspace access, task management, comments, and notifications.

The platform includes realtime private messaging with WebSocket delivery, conversation history, and read receipt support through the API Gateway and chat service.

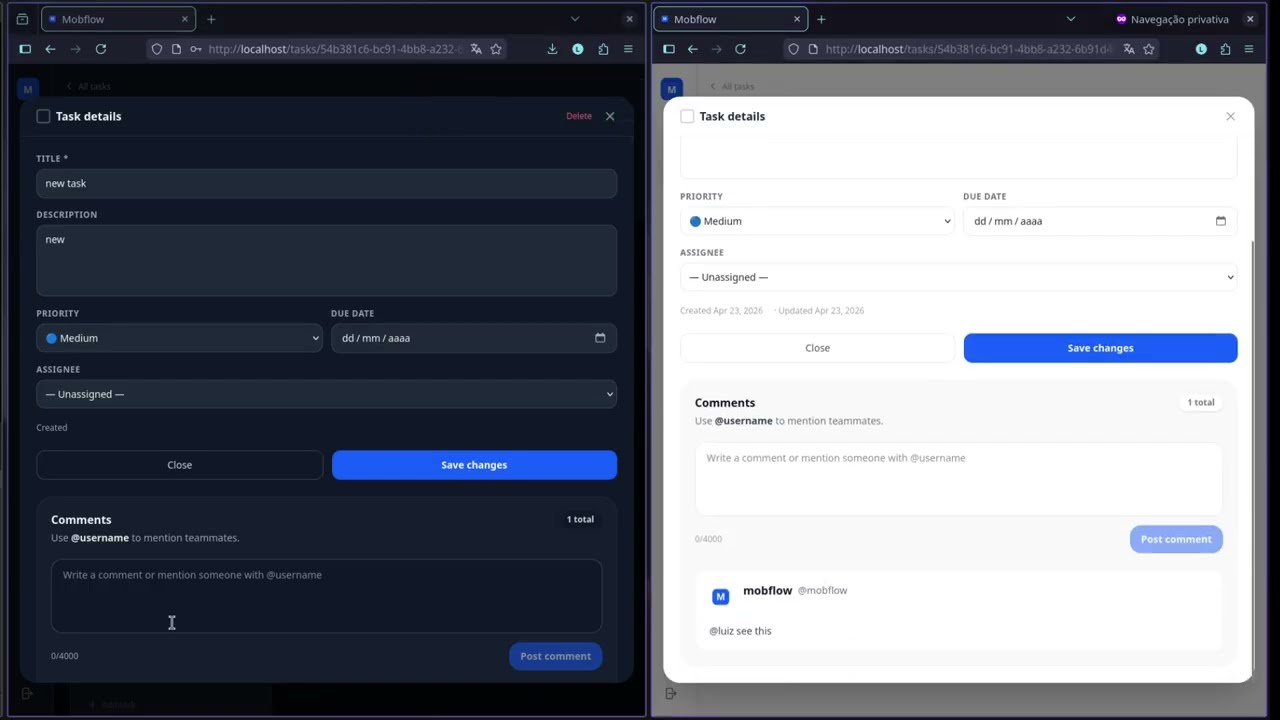

Task comments support collaborative discussion and @mentions, allowing users to trigger targeted notification events during task-related conversations.

Required to run the full platform:

• Docker Engine or Docker Desktop with Docker Compose V2

Optional for local development outside containers:

• Java 21
• Maven 3.9+
• Node.js 24
• npm 11+
• OpenSSL or another secure secret generator

Mobflow uses the root .env file as the shared runtime configuration for Docker Compose and the backend services.

1. Copy the reference file:

cp .env.example .env

2. Generate a Base64 JWT secret and place it in JWT_SECRET:

openssl rand -base64 32

3. Generate the shared internal service secret and place it in INTERNAL_SECRET:

openssl rand -hex 32

Key points:

• JWT_SECRET is used by all services that validate access tokens.
• INTERNAL_SECRET secures synchronous /internal/** calls between services through the X-Internal-Secret header.
• .env.example is the reference template; .env is your local runtime file.

1. Verify Docker is available:

docker version

2. Clone the repository and enter the project directory:

git clone https://github.com/LuizAndradeDev/mobflow.git
cd mobflow

3. Create and populate .env as described above.

4. Start PostgreSQL first on a clean setup:

docker compose up -d postgres

5. Verify that the isolated relational databases were created from init-db.sql:

docker compose exec postgres sh -lc 'PGPASSWORD="$POSTGRES_PASSWORD" psql -U "$POSTGRES_USER" -d postgres -c "\\l"'

Expected databases:

• mobflow_auth
• mobflow_user
• mobflow_workspace
• mobflow_task

6. Start the rest of the platform:

docker compose up --build -d

7. Validate the main edge and gateway:

docker compose ps
curl http://localhost/health
curl http://localhost:8087/actuator/health

Useful maintenance commands:

docker compose down
docker compose down -v
docker compose logs -f <service-name>

Optional frontend development outside Docker:

cd web-app
npm install
npm start

The Angular development proxy targets http://localhost:8080, so this mode assumes the gateway is running locally on that port. If you are using the Dockerized stack through nginx on http://localhost, update web-app/proxy.conf.json or run the frontend against the production edge instead.

The following local tools are exposed by Docker Compose:

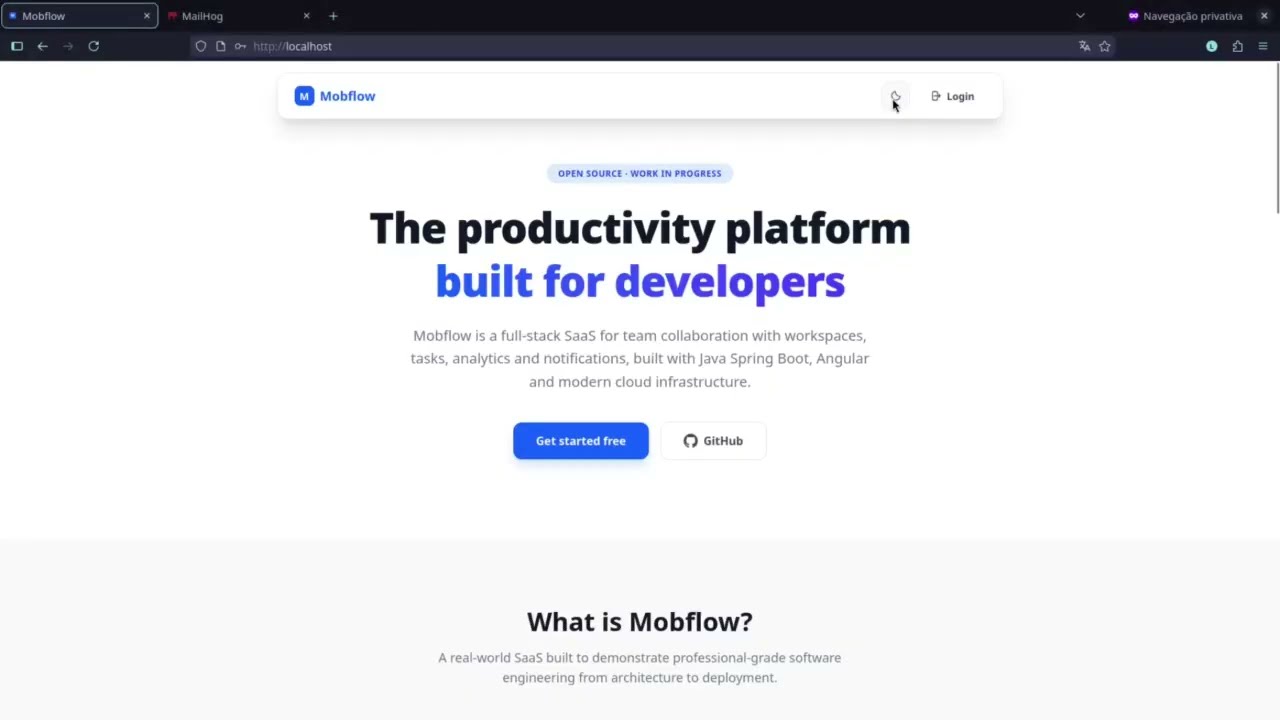

1. Open the application at http://localhost.
2. Register with username, email, and password.
3. After registration, wait for the confirmation message.
4. Open MailHog at http://localhost:8025.
5. Open the confirmation email and follow the confirmation link.
6. Return to the application and log in with the confirmed account.

Mobflow follows a consistent request path for user-facing operations:

Client -> Nginx -> API Gateway -> Services -> Data Stores / Kafka

In local production-style runs, the browser loads the Angular app from nginx, external API traffic is routed through api-gateway, and each backend service owns its own domain logic and persistence. Kafka is used for side effects that should be decoupled from the request path, especially notification fan-out.

The system has three dominant interaction patterns:

1. Browser request flow: the client reaches nginx, nginx proxies API or WebSocket traffic to api-gateway, and the gateway routes the request to the service that owns the bounded context.
2. Internal synchronous flow: services call dedicated internal endpoints when they need request-scoped authorization or enrichment data that must stay owned by another service.
3. Event-driven flow: services publish domain events to Kafka, and notification-service consumes them to create in-app notifications and email deliveries without blocking the original user request.

nginx is the public entry point for the browser. It serves the compiled Angular bundle, handles SPA refreshes, proxies /api/** to the gateway, and upgrades /chat/ws/chat for realtime chat connections. This keeps the frontend deployment model simple while preserving a single browser-facing origin.

api-gateway is the single public backend router. It maps external paths to the correct service, validates JWTs for protected /api/** routes, applies an in-memory rate limit, and propagates request context through headers such as X-Correlation-Id, X-User-Id, and X-User-Roles. It also rewrites routes for services that expose internal context paths, such as /tasks, /social, and /chat.

auth-service, user-service, workspace-service, and task-service cover identity, profiles, workspaces, and task management. These services use PostgreSQL for transactional data and keep ownership boundaries explicit: credentials live only in auth-service, profile data and avatars live only in user-service, workspace membership lives only in workspace-service, and board/list/task state lives only in task-service.

social-service, chat-service, and notification-service cover comments, friendships, messaging, and notification delivery. They use MongoDB because these domains are naturally document-oriented and often evolve around nested or append-heavy interaction records rather than relational joins.

Kafka is used for domain events that should not block the request path, especially notification flows. PostgreSQL, MongoDB, Redis, and MinIO are shared as infrastructure, but state ownership remains service-specific. Services do not reach into another service's database; they communicate through HTTP contracts or events.

Core services:

• auth-service: registration, login, email confirmation, JWT issuance, and trusted user lookup by username.
• user-service: user profiles, avatar storage, and batch profile lookups for other services.
• workspace-service: workspace lifecycle, membership, invites, and role checks.
• task-service: boards, task lists, tasks, workspace summaries, and analytics.

Collaboration services:

• social-service: friendships, friend requests, task comments, mentions, and related enrichment.
• chat-service: conversations, message history, realtime delivery, and friendship validation before direct chat.
• notification-service: consumes platform events and stores or delivers in-app and email notifications.

Mobflow uses two communication styles:

• Synchronous HTTP: browser requests enter through nginx and api-gateway, then reach the target service over REST. Services also call trusted internal endpoints when they need request-scoped authorization or enrichment data. Examples include task-service asking workspace-service for member roles, workspace-service asking user-service to resolve usernames, social-service validating task context and membership, and chat-service validating friendship status before opening private conversations.
• Asynchronous Kafka: auth-service, workspace-service, task-service, social-service, and chat-service publish domain events. Current topics include auth-events, workspace-events, task-events, social-comment-events, social-friendship-events, and social.events. notification-service consumes those events to generate notifications and email side effects without coupling notification delivery to the latency or availability of the original request path.

Kafka is intentionally used for cross-service side effects, not as the primary request transport. User-facing reads and writes still happen over HTTP, while notifications and similar fan-out concerns are pushed into asynchronous processing.

Authentication is stateless and JWT-based. auth-service issues tokens, api-gateway validates them at the edge, and downstream services validate them again with the shared JWT secret. This avoids centralizing all authorization decisions in the gateway and lets each service keep responsibility for its own domain rules.

Trusted backend-to-backend calls use X-Internal-Secret on dedicated internal endpoints such as /internal/** and auth-service's /internal/auth/**. In practice, Mobflow uses this for membership checks, user/profile enrichment, username resolution, task context lookups, workspace summaries, and friendship validation. These internal endpoints are intentionally narrow and are used only when one service must consult another service's source of truth.

This results in a simple defense-in-depth model:

• the gateway blocks unauthenticated external traffic on protected routes;
• each service validates JWTs again for its own public endpoints;
• internal endpoints require the shared secret and are not exposed as part of the browser-facing API surface.

Each backend service exposes Spring Boot Actuator health and Prometheus metrics endpoints. Prometheus scrapes those endpoints, Grafana provides pre-provisioned local dashboards, and X-Correlation-Id is propagated across HTTP calls for request tracing through the gateway and internal service calls.

The CI workflow is intentionally focused on validation rather than deployment. It currently covers:

• backend build and tests per service
• backend quality checks
• frontend tests and production build
• repository security scanning

Docker Compose remains a local runtime tool for bootstrapping the full platform, but it is not part of the CI pipeline.

Useful local validation commands:

(cd api-gateway && ./mvnw --batch-mode --no-transfer-progress verify)
scripts/test-backend.sh
scripts/ci/check-backend-quality.sh

• API Gateway
• Auth Service
• User Service
• Workspace Service
• Task Service
• Social Service
• Chat Service
• Notification Service

This project is licensed under the Mobflow Attribution-NonCommercial License 1.0.
