TL;DR: This repo provide joint 2D-3D self-supervised pre-trained Point Transformer V3 for 3D point cloud downstream tasks, modified from Sonata.

This repo is the official project repository of the paper Concerto: Joint 2D-3D Self-Supervised Learning Emerges Spatial Representations and is mainly used for providing pre-trained models, inference code and visualization demo. For reproduce pre-training process of Concerto, please refer to our Pointcept codebase.
[ Pretrain ] [ Concerto ] - [ Homepage ] [ Paper ] [ Bib ]

• October, 2025 : We release the pre-training code along with Pointcept and provide an easy-to-use inference demo and visualization with our pre-trained model weight in this repo. We highly recommend user begin with is repo for quick start.

• Installation
• Quick Start
• Citation

This repo provide two ways of installation: standalone mode and package mode.

• The standalone mode is recommended for users who want to use the code for quick inference and visualization. We provide a most easy way to install the environment by using conda environment file. The whole environment including cuda and pytorch can be easily installed by running the following command:

  # Create and activate conda environment named as 'concerto'
  # cuda: 12.4, pytorch: 2.5.0

  # run `unset CUDA_PATH` if you have installed cuda in your local environment
  conda env create -f environment.yml --verbose
  conda activate concerto

  We install FlashAttention by default, yet not necessary. If FlashAttention is not available in your local environment, it's okay, check Model section in Quick Start for solution.

• The package mode is recommended for users who want to inject our model into their own codebase. We provide a setup.py file for installation. You can install the package by running the following command:

  # Ensure Cuda and Pytorch are already installed in your local environment

  # CUDA_VERSION: cuda version of local environment (e.g., 124), check by running 'nvcc --version'
  # TORCH_VERSION: torch version of local environment (e.g., 2.5.0), check by running 'python -c "import torch; print(torch.__version__)"'
  pip install spconv-cu${CUDA_VERSION}
  pip install torch-scatter -f https://data.pyg.org/whl/torch-{TORCH_VERSION}+cu${CUDA_VERSION}.html
  pip install git+https://github.com/Dao-AILab/flash-attention.git
  pip install huggingface_hub timm

  # (optional, or directly copy the concerto folder to your project)
  python setup.py install

  Additionally, for running our demo code, the following packages are also required:

  pip install open3d fast_pytorch_kmeans psutil addict scipy camtools natsort opencv-python trimesh gradio numpy==1.26.4  # currently, open3d does not support numpy 2.x

Let's first begin with some simple visualization demo with Concerto, our pre-trained PTv3 model:

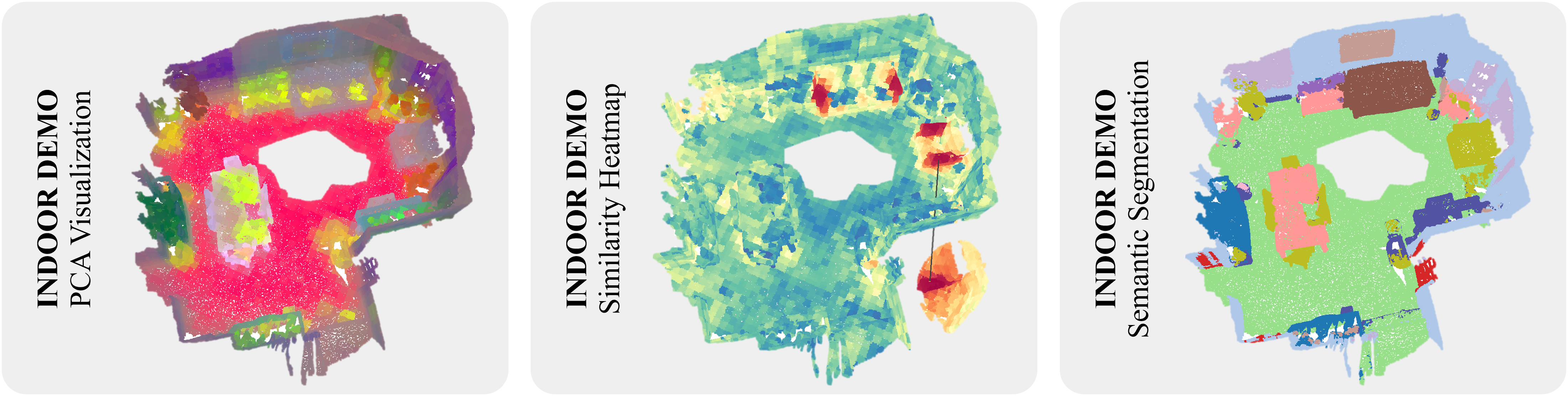

• Visualization. We provide the same visualization demo as Sonata: the similarity heatmap and PCA visualization demo in the demo folder. Additionally, we provide the visualization without color/normal input and the demo for videos lifted by VGGT. We offer three models of different sizes: "concerto_small"(39M), "concerto_base"(108M), "concerto_large"(208M). You can run the following command to visualize the result of "concerto_large":

  # For visualization demo without color and normal, use python demo/xxx.py --wo_color --wo_normal
  export PYTHONPATH=./
  python demo/0_pca.py
  python demo/1_similarity.py
  python demo/2_sem_seg.py  # linear probed head on ScanNet



  For video demo, we need VGGT to lift video to point cloud. The additional installation for VGGT is as below:

  git clone https://github.com/facebookresearch/vggt.git
  cd vggt
  pip install -e .
  cd ..
  # Or you can copy the vggt folder in the vggt repository to ./demo
  # Then you can run the demo
  python demo/4_pca_video.py \
  --input_video ${YOUR_VIDEO_PATH} \
  --conf_thres 0 \
  --prediction_mode "Depthmap and Camera Branch" \
  --if_TSDF \
  --pca_start 1 \
  --pca_brightness 1.2 # the usage of these inpputs can be found in 'help'.

Then, here are the instruction to run inference on custom data with our Concerto:

• Data. Organize your data in a dictionary with the following format:

  # single point cloud
  point = {
    "coord": numpy.array,  # (N, 3)
    "color": numpy.array,  # (N, 3)
    "normal": numpy.array,  # (N, 3)
    "segment": numpy.array,  # (N,) optional
  }

  # batched point clouds

  # check the data structure of batched point clouds from here:
  # https://github.com/Pointcept/Pointcept#offset
  point = {
    "coord": numpy.array,  # (N, 3)
    "color": numpy.array,  # (N, 3)
    "normal": numpy.array,  # (N, 3)
    "batch": numpy.array,  # (N,) optional
    "segment": numpy.array,  # (N,) optional
  }

  One example of the data can be loaded by running the following command:

  point = concerto.data.load("sample1")

• Transform. The data transform pipeline is shared as the one used in Pointcept codebase. You can use the following code to construct the transform pipeline:

  config = [
      dict(type="CenterShift", apply_z=True),
      dict(
          type="GridSample",
          grid_size=0.02,
          hash_type="fnv",
          mode="train",
          return_grid_coord=True,
          return_inverse=True,
      ),
      dict(type="NormalizeColor"),
      dict(type="ToTensor"),
      dict(
          type="Collect",
          keys=("coord", "grid_coord", "color", "inverse"),
          feat_keys=("coord", "color", "normal"),
      ),
  ]
  transform = concerto.transform.Compose(config)

  The above default inference augmentation pipeline can also be acquired by running the following command:

  transform = concerto.transform.default()

• Model. Load the pre-trained model by running the following command:

  # Load the pre-trained model from Huggingface
  # supported models: "concerto_large", "concerto_base", "concerto_small"
  # ckpt is cached in ~/.cache/concerto/ckpt, and the path can be customized by setting 'download_root'
  # three models of different size: concerto_large, concerto_base, concerto_small
  model = concerto.model.load("concerto_large", repo_id="Pointcept/Concerto").cuda()

  # or
  from concerto.model import PointTransformerV3
  model = PointTransformerV3.from_pretrained("Pointcept/Concerto").cuda()

  # Load the pre-trained model from local path
  # assume the ckpt file is stored in the 'ckpt' folder
  model = concerto.model.load("ckpt/concerto_large.pth").cuda()

  # the ckpt file store the config and state_dict of pretrained model

  If FlashAttention is not available, load the pre-trained model with the following code:

  custom_config = dict(
      enc_patch_size=[1024 for _ in range(5)],
      enable_flash=False,  # reduce patch size if necessary
  )
  model = concerto.load("concerto_large", repo_id="Pointcept/Concerto", custom_config=custom_config).cuda()
  # or
  from concerto.model import PointTransformerV3
  model = PointTransformerV3.from_pretrained("Pointcept/Concerto", **custom_config).cuda()

• Inference. Run the inference by running the following command:

  point = transform(point)
  for key in point.keys():
      if isinstance(point[key], torch.Tensor):
          point[key] = point[key].cuda(non_blocking=True)
  point = model(point)

  As Concerto is a pre-trained encoder-only PTv3, the default output of the model is point cloud after hierarchical encoding. The encoded point feature can be mapping back to original scale with the following code:

  for _ in range(2):
      assert "pooling_parent" in point.keys()
      assert "pooling_inverse" in point.keys()
      parent = point.pop("pooling_parent")
      inverse = point.pop("pooling_inverse")
      parent.feat = torch.cat([parent.feat, point.feat[inverse]], dim=-1)
      point = parent
  while "pooling_parent" in point.keys():
      assert "pooling_inverse" in point.keys()
      parent = point.pop("pooling_parent")
      inverse = point.pop("pooling_inverse")
      parent.feat = point.feat[inverse]
      point = parent

  Yet during data transformation, we operate GridSampling which makes the number of points feed into the network mismatch with the original point cloud. Using the following code to further map the feature back to the original point cloud:

  feat = point.feat[point.inverse]

If you find Concerto useful to your research, please consider citing our works as an acknowledgment. (੭ˊ꒳​ˋ)੭✧

@inproceedings{zhang2025concerto,
  title={Concerto: Joint 2D-3D Self-Supervised Learning Emerges Spatial Representations},
  author={Zhang, Yujia and Wu, Xiaoyang and Lao, Yixing and Wang, Chengyao and Tian, Zhuotao and Wang, Naiyan and Zhao, Hengshuang},
  booktitle={NeurIPS},
  year={2025}
}

@inproceedings{wu2025sonata,
    title={Sonata: Self-Supervised Learning of Reliable Point Representations},
    author={Wu, Xiaoyang and DeTone, Daniel and Frost, Duncan and Shen, Tianwei and Xie, Chris and Yang, Nan and Engel, Jakob and Newcombe, Richard and Zhao, Hengshuang and Straub, Julian},
    booktitle={CVPR},
    year={2025}
}

@inproceedings{wu2024ptv3,
    title={Point Transformer V3: Simpler, Faster, Stronger},
    author={Wu, Xiaoyang and Jiang, Li and Wang, Peng-Shuai and Liu, Zhijian and Liu, Xihui and Qiao, Yu and Ouyang, Wanli and He, Tong and Zhao, Hengshuang},
    booktitle={CVPR},
    year={2024}
}

@inproceedings{wu2024ppt,
    title={Towards Large-scale 3D Representation Learning with Multi-dataset Point Prompt Training},
    author={Wu, Xiaoyang and Tian, Zhuotao and Wen, Xin and Peng, Bohao and Liu, Xihui and Yu, Kaicheng and Zhao, Hengshuang},
    booktitle={CVPR},
    year={2024}
}

@inproceedings{wu2023masked,
  title={Masked Scene Contrast: A Scalable Framework for Unsupervised 3D Representation Learning},
  author={Wu, Xiaoyang and Wen, Xin and Liu, Xihui and Zhao, Hengshuang},
  journal={CVPR},
  year={2023}
}

@inproceedings{wu2022ptv2,
    title={Point transformer V2: Grouped Vector Attention and Partition-based Pooling},
    author={Wu, Xiaoyang and Lao, Yixing and Jiang, Li and Liu, Xihui and Zhao, Hengshuang},
    booktitle={NeurIPS},
    year={2022}
}

@misc{pointcept2023,
    title={Pointcept: A Codebase for Point Cloud Perception Research},
    author={Pointcept Contributors},
    howpublished={\url{https://github.com/Pointcept/Pointcept}},
    year={2023}
}

• Concerto code is based on Sonata code, which is released by Meta under the Apache 2.0 license;
• Concerto weight is released under the CC-BY-NC 4.0 license (restricted by NC of datasets like HM3D, ArkitScenes).
